Description:
This product is a portable Bluetooth remote controller, used for Mobile Phone, MID, TV box, PC, Gamepad, Wireless mouse etc.
Support iOS, Android OS, Windows etc. The information is subject to change without prior notice.
Mode 1: Android mouse/shutter/game, both press START and Mode 1 button to power on.
Mode 2: Android msuic/shutter/game, both press START and Mode 2 button to power on.
Mode 3: IOS shutter/game, both press START and Mode 3 button to power on
Portable Bluetooth remote controller Mini Bluetooth Gampad & selfie shutter remote &Remote Controller used for Mobile Phone, MID, TV box, Gampad, Wireless mouse etc, Music
Specification:Dimensions:3.07 in x 1.3 in x 0.63 in (7.8 cm x 3.3 cm x 1.6 cm)
Wireless Bluetooth 3.0 compliant
Wireless distance £º2-10m
OS Android /iOS/PC
CPU ARM968E-S Core
Battery Li-battery 3.7V 180mA
Continuous time£ºAbout 40 hours
Working current £º0.5~4mA
Standby current £º0.5-1mA
Charging current £º5V <200mA
ShutDown Current £º<20uA
instruction:
Power ON: Press start button until LED is on (about 2 seconds).
Power OFF: Press start button until LED is off (about 5 seconds).
Pair and connect: After power on, the device will automatic enter the Bluetooth pairing mode, The blue LED is flashing, Then find the address and name of equipment, pressing confirm button to be connected. After connectting successed, blue LED indicator will turn off.
Note:
1. The system default boot is Android mode 1, the system will remember the last boot mode.
2. In android mode 1, the blue LED is on during startup, else mode, the red LED is on.
3. After power on, if not connected by spending more than 5 minutes, or if connected success, but more than 10 minutes no any operations, the device will automation shutdown.
4. Press START button more than 8 minutes to power up, the blue LED will flash. This enter re-pairing mode,At this time will not automatically connect the last paired device.
5. In power on or off state, the [GAME-KEY] switch is always available.
6. Android mode is invalid for iOS, in iOS mode will display "-iOS"for bluetooth name.

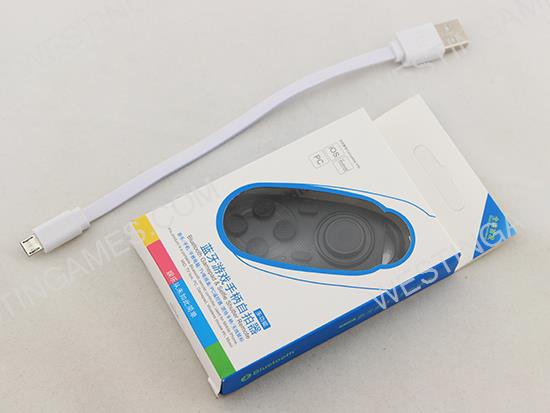

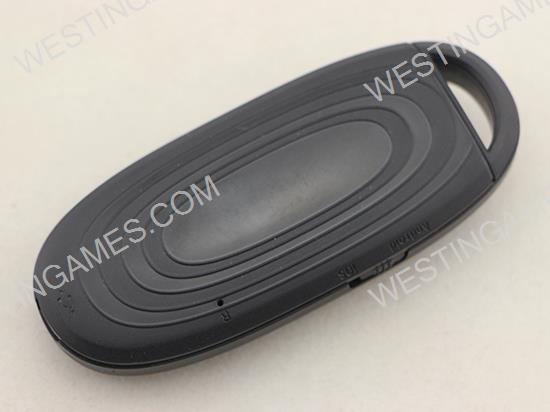

1* New Multifunctional Bluetooth Gamepad and Selfie Shutter Remote Self-Timer for Smartphone - Black
